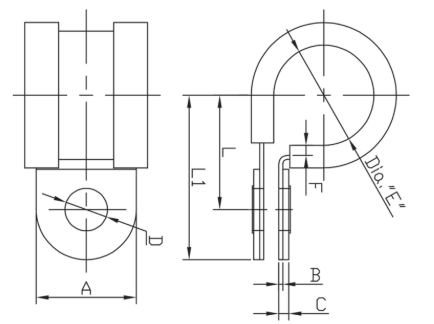

Clip With Rubber
| Dia. "E" | A±0.5 | B±0.1 | C±0.2 | D±0.2 | F±0.3 | L±2 | L1±2 |
| Φ4–Φ60 | 9mm | 0.5mm | 1.5mm | Φ4.3 | 1 | E/2 + 6.2 | E/2 + 10.7 |
| Φ4–Φ60 | 12mm | 0.5mm | 1.5mm | Φ5.3 | 1.2 | E/2 + 7.7 | E/2 + 13.7 |
| Φ4–Φ14 | 15mm | 0.6mm | 1.6mm | Φ6.4 | 1.5 | E/2 + 9.6 | E/2 + 17.1 |
| Φ15–Φ60 | 15mm | 0.8mm | 1.8mm | Φ6.4 | 1.5 | E/2 + 9.8 | E/2 + 17.3 |
| Φ10–Φ24 | 20mm | 0.8mm | 2.0mm | Φ8.4 | 2 | E/2 + 12.8 | E/2 + 22.8 |
| Φ25–Φ60 | 20mm | 1.0mm | 2.2mm | Φ8.4 | 2 | E/2 + 13 | E/2 + 23 |
| Φ14–Φ49 | 25mm | 1.0mm | 2.2mm | Φ10.5 | 3 | E/2 + 16.5 | E/2 + 29 |
| Φ50–Φ60 | 25mm | 1.2mm | 2.4mm | Φ10.5 | 3 | E/2 + 16.7 | E/2 + 29.2 |
