JYD6

Hollow wall anchors securely fasten mirrors, pictures,
cabinets, curtain‑drapes‑shelf brackets, bathroom fixtures, to hollow walls of plaster over wood lath, wallboard, gypsum or cinder block.hollow tile,etc.

Fixtures can be removed or replaced for redcorating without disturbing the Hollow Wall Anchors.

Price Inquiry

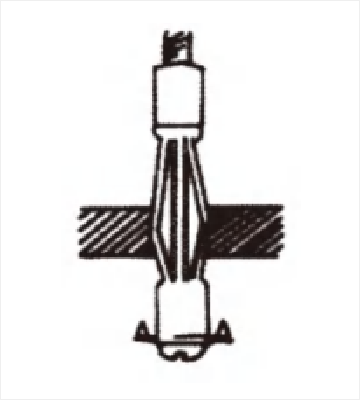

Inser Anchor through wall and tap until bead is flat against the suface.

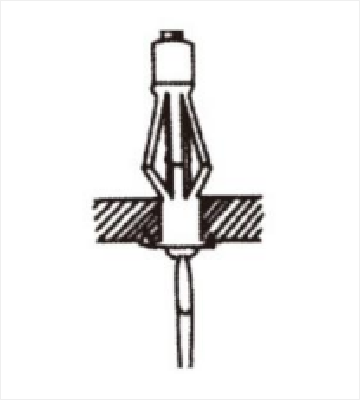

Expand it by turning screw until resistance is felt.

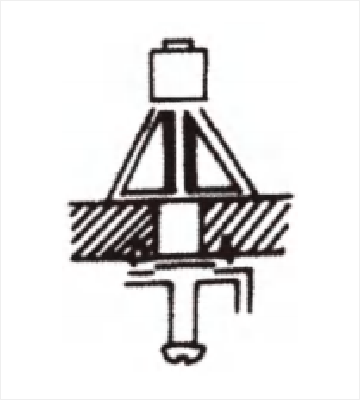

Remove screw and place it through fixture. Insert and retighten.

Specification and parameter display

Item No.	Specification	Item No.(Inch)	Diameter	Height
405	M4X21	1/8"-XS	8	UP-4
409	M4X32	1/8"-S	8	3-9
416	M4X38	1/8"－M	8	8-15
422	M4X46	1/8" -SL	8	3-20
423	M4X46	1/8" -L	8	16-21
425	M4X54	1/8" -ML	8	18-28
427	M4X59	1/8" -XL	8	34-38
510	M5X37	3/16" -E	9	6-13
514	M5X52	3/16" -S	9	3-16
527	M5X65	3/16" -L	9	14-32
545	M5X80	3/16" -XL	9	28-45
610	M6X37	1/4" -E	10	6-13
614	M6X52	1/4" -S	10	3-16
627	M6X65	1/4" -L	10	14-32
645	M6X80	1/4" -XL	10	28-45
810	M8X37			6-13
814	M8X52			3-16
827	M8X65			14-32
845	M8X80			28-45
